Biomass Dryer Machine

Dryer Machine

Sawdust Dryer Machine

JK Waste to Energy, Dryer Machine, Biomass dryer and Sawdust Dryer can be used to dry any material such as agricultural waste, forestry waste, municipal solid waste, wood powder. The results of dryer are based on the moisture content of your raw material and the size of the raw material.

Our Wood Sawdust Dryer, Biomass Dryer or dryer machine is designed to reduce moisture from 45% to 10 / 15 %. Which is suitable for briquetting press, biomass power plants, pellet mill and other industry.

Features

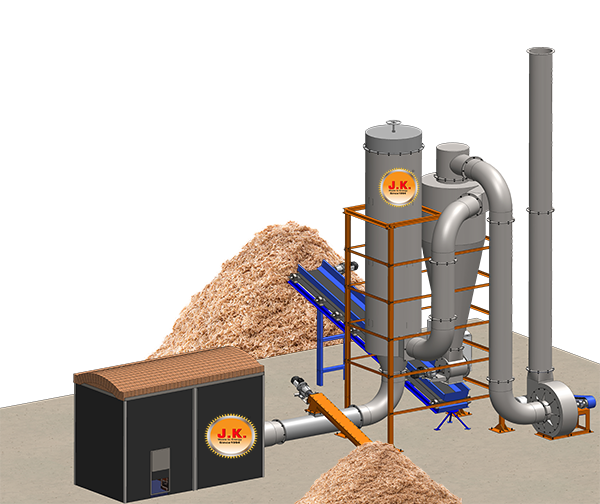

    Biomass Dryer Machine is used to dry wet raw material before it goes for hammering process. Through this drying process the moisture content present in the raw material wafts away in the form of hot air through the air tap of Dryer machine plant. This dryer machine consists of screw conveyor, feeding hopper, a transport line comprising of insulated drying column and a pipe that transports wet or moist material with hot air. A forceful pressure opens up the wheel centrifugal fan which removes the moisture content to a large extent.

Technical Specification

Input (Feed) Moisture : Up to 45%
Input Raw Material : Any agriculture waste, any wood grinding powder.
Raw Material Dia Size : Up to 5mm
Raw Material Length Size : Up to 15
Out Put Moisture : Up to 15%
Production Capacity : Up to 3000 Kg/Hr 10% ± (*The production capacity depends on the density and moisture of the raw material)
